GZ - ISM strip for 2-leaf doors

ISM strip for double-leaf doors - mechanical coordination of the gradual closing of the door leaves, integrated into the continuous...
€422,95 EUR
€422,95 EUR

VAT included

Subtotal: €422,95

Free Shipping

Free standard shipping on orders over €200

Free Returns

Return products within 30 days from your order without any fees.

We ship your order within 1-3 business days

GZ - ISM strip for 2-leaf doors

GZ - ISM strip for 2-leaf doors

€422,95

GZ - ISM strip for 2-leaf doors

€422,95
Execution: E ISM bar - fire arrester connected to EPS

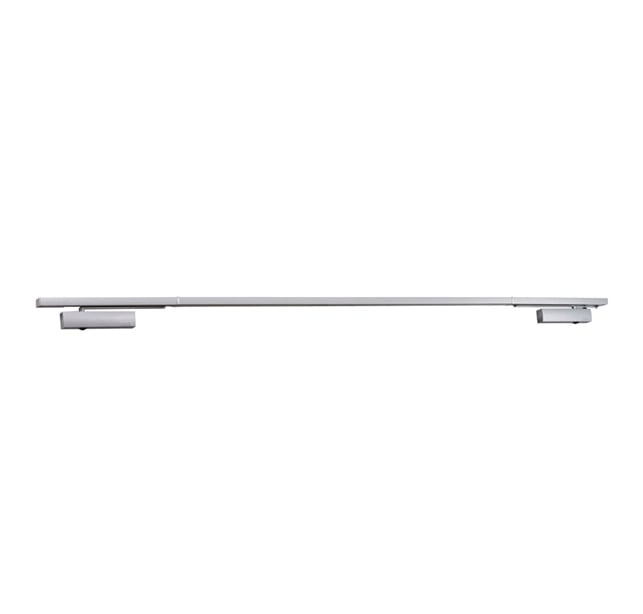

ISM strip for double-leaf doors - mechanical coordination of the gradual closing of the door leaves, integrated into the continuous strip. In combination with ISM TS 3000 and ISM TS 5000. It is made of aluminum and has a surface treatment.

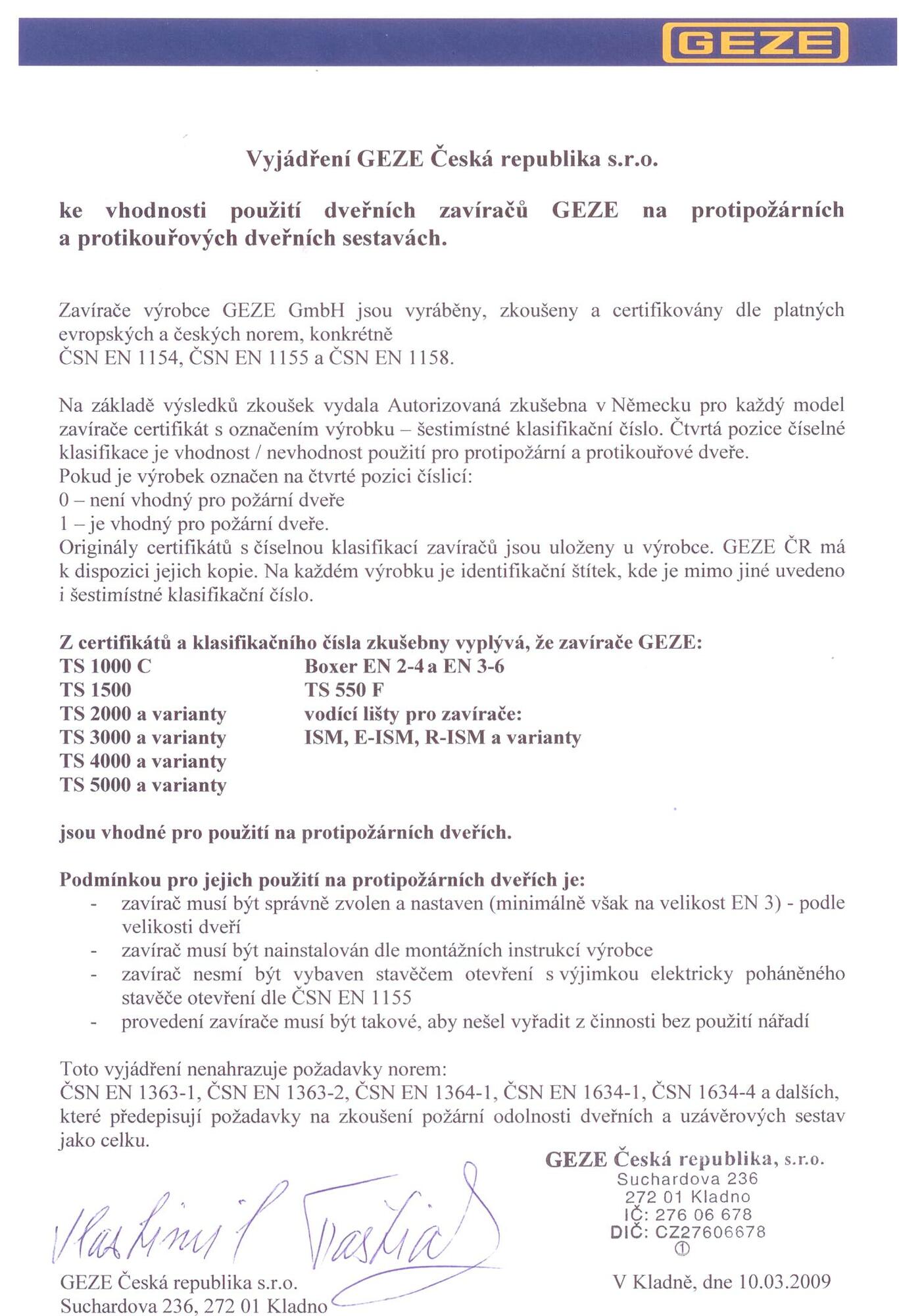

When choosing an ISM strip, it is necessary to comply with the requirements of the SN EN 1154 standard, which determines the size of the strip (closing force) in relation to the width of the door leaf.
In combination with ISM TS 3000, the ISM strip has a closing force according to SN EN 1154 in four sizes, namely 1 - 4.
In combination with ISM TS 5000, the ISM strip has a closing force according to SN EN 1154 in five sizes, namely 2 - 6.
ISM strip for double-leaf doors is intended for fire and smokeproof door. Optional function is electromagnetic arrest and electromagnetic arrest with smoke sensor.


Area of use ISM (mounting on the hinge side)
For 2-leaf doors, leaf width up to 1400 mm
Min. hinge distance = 1300 mm, max. distance of hinges = 2800 mm
 Excessive length up to 3200 mm
Symmetrical and non-symmetrical division of the door is possible, minimum width of the passive leaf = 400 mm

Use:
Installation on doors opening outwards during internal assembly of self-closers with ISM bar.
Method of assembly - on the side of the hinges.

Note:
ISM strips are available in standard surface finishes, with the option of re-ordering in black and RAL shades according to the sample book. Prices and delivery date for self-closing devices in black and RAL colors on request.
