GZ - TS 3000 Self Mounting Plate - closing device with sliding bar

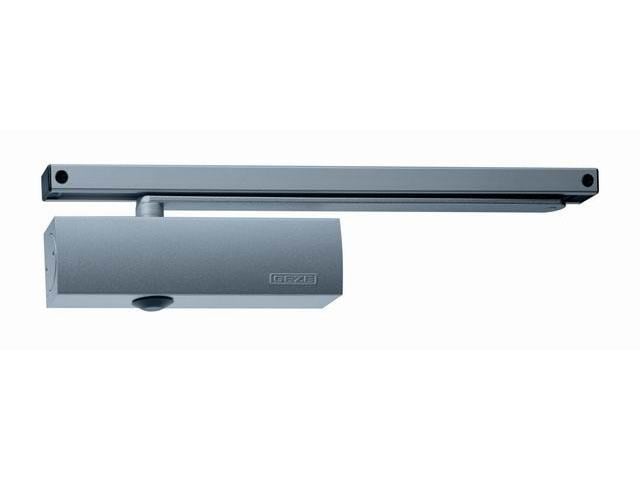

The GEZE - TS 3000 upper door self-closer with sliding rail is made of aluminum and has a surface treatment....
€177,95 EUR
€177,95 EUR

VAT included

Subtotal: €177,95

Free Shipping

Free standard shipping on orders over €200

Free Returns

Return products within 30 days from your order without any fees.

We ship your order within 1-3 business days

GZ - TS 3000 Self Mounting Plate - closing device with sliding bar

GZ - TS 3000 Self Mounting Plate - closing device with sliding bar

€177,95

GZ - TS 3000 Self Mounting Plate - closing device with sliding bar

€177,95
Execution: self-closer TS 3000 with sliding BG rail (rail for mounting on the side against the hinges)

The GEZE - TS 3000 upper door self-closer with sliding rail is made of aluminum and has a surface treatment. The self-closing device meets the requirements of the SN EN 1154 standard and is tested for min. 500,000 closing cycles. It is characterized by trouble-free operation and a long service life.
When choosing a self-closer, it is necessary to comply with the requirements of the SN EN 1154 standard, which determines the size of the self-closer (closing force) in relation to the width of the door leaf. The door closer GEZE - TS 3000 has a closing force according to SN EN 1154 in four sizes, specifically 1 - 4:
The closing force of size 1 according to SN EN 1154 - is for a door leaf width of up to 750 mm, it must not be set on fire doors
The closing force of size 2 according to SN EN 1154 - is for door leaf width from 750 mm to 850 mm, may not be set on fire doors
Closing force size 3 according to SN EN 1154 - is for door leaf width from 850 mm to 950 mm
Closing force size 4 according to SN EN 1154 - is for door leaf width from 950 mm to 1,100 mm

The recommended weight of the door leaf according to SN EN 1154 is 80 kg for this self-closer.
Upper door closer with sliding bar GEZE - TS 3000 has the option of setting the door closing speed and the hydraulic end stop during closing (valve). Also permanent opening position setting - 80° - 130° with locking (not for fire and smoke doors. Optional function is electromagnetic locking and electromagnetic locking with smoke sensor.

Usage:
 For heavier interior / exterior doors made of material - wood / glass (with mounting plate for glass doors); steel / aluminum / plastic
 Orientation of doors - for left and right doors
 Method of installation - on the door leaf on the side of the hinges / against the hinges (BG sliding rail) or on the frame on the side against the hinges (BG sliding rail)

Note:
Self-closers are available in standard finishes, with the option of re-ordering in black and RAL shades according to the sample. Prices and delivery date for self-closers in black and RAL colors upon request.
